Introduction:

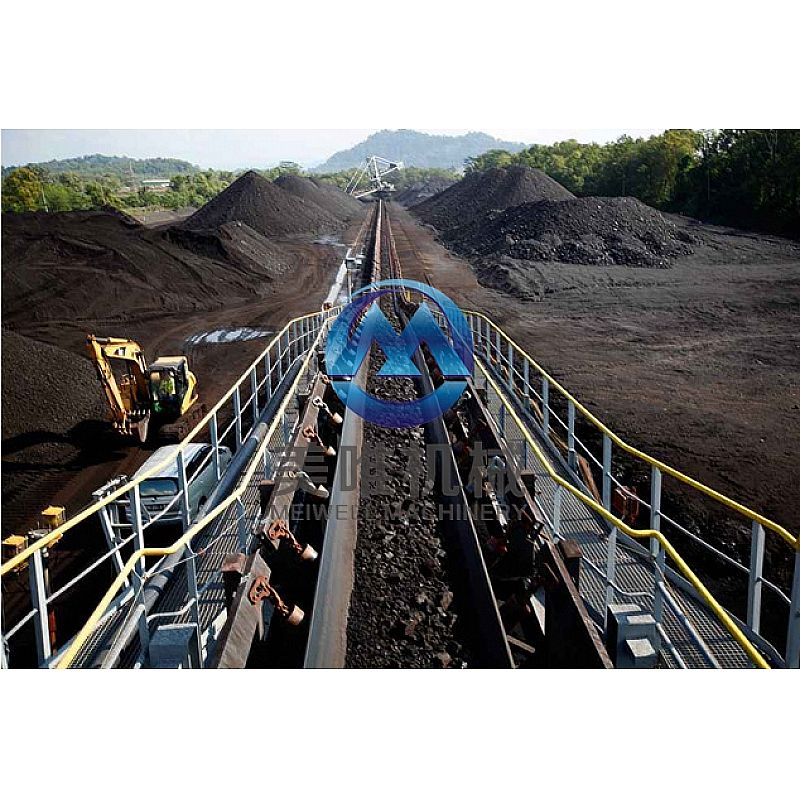

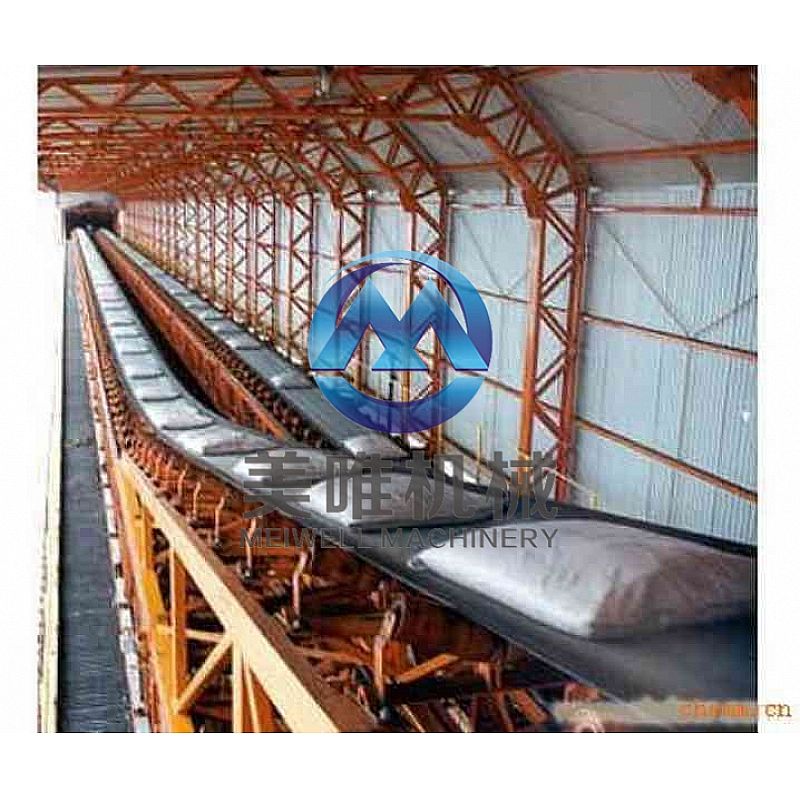

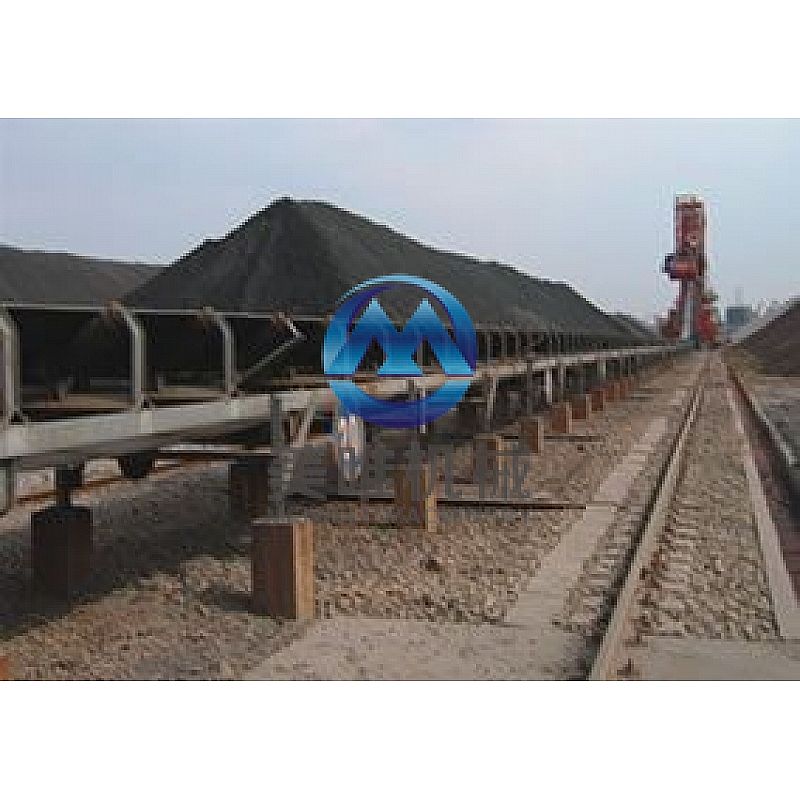

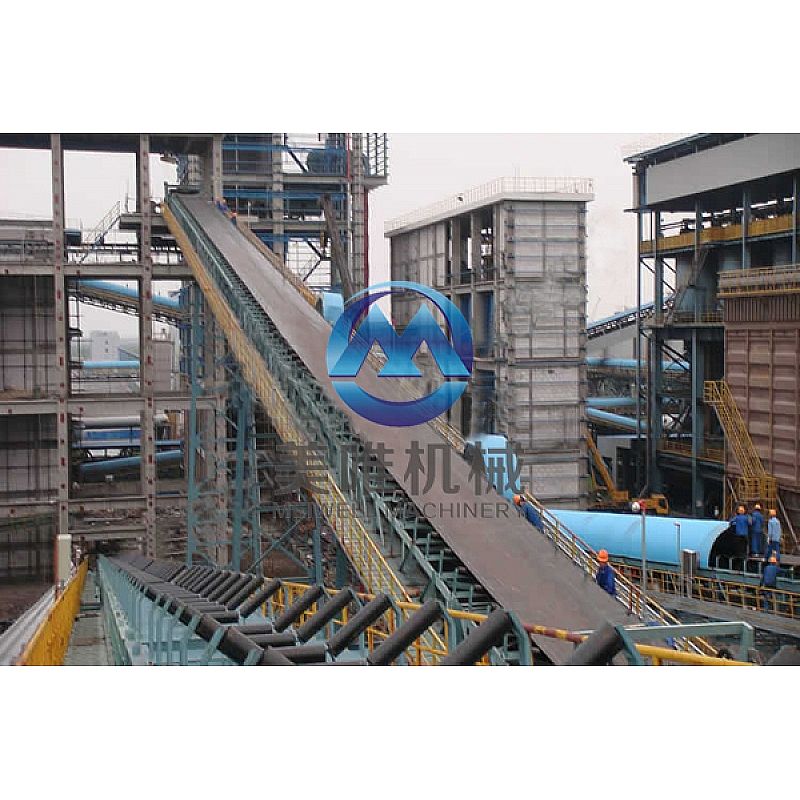

DT II (A) Belt conveyor is the improved products of DTII Series products, which can be used in the filed of coal, mining, ports, power plants, building materials, metallurgy and other industries;

This products can transmit a variety of bulk material or objects, whose density is 0.5-2.5t/m3 . And the temperature in working environment is from -25℃ to -40℃. It is suitable for tilting and horizontal transmission. It’s also a workable transmission form of a concave, convex combination of arc and straight line .

With advantage of single point dricve and multi-point drive, drive power of 30-100kw, a tensioning device of spiral-type, vehicle, vertical, fixed and winch-type, the products standards correspond to MT821-2006 " Belt Conveyor Idler technical conditions for coal mining " and GB10595-89" belt conveyor technology conditions. "

Application:

DT II (A) Belt conveyor is the improved products of DTII Series products, which can be used in the filed of coal, mining, ports, power plants, building materials, metallurgy and other industries;

Features:

1. Can automatic control

2.The temperature is below 65 degrees in conveying material

3.Adapt conveying different materials

Technical Parameter

Belt width(mm)

B=500

B=650

B=800

B=1000

B=1200

section form

sulciform

flat

sulciform

flat

sulciform

flat

sulciform

flat

sulciform

flat

speed(m/s)

0.8-2

bulk density (t/m3)

1.0-2.5

convey distance(m)

According to the order

inclination

0-20°

Drive type

Reducer or oil cooling electric drive drum

Convey ability(t/h)

92-229

42-104

155-387

71-177

235-586

107-268

435-1033

230-455

655-1556

345-677

power (10m)

3

4

5.5

11

15
