MC buried scraper conveyor

MC buried scraper conveyorMC buried scraper conveyorMC buried scraper conveyorMC buried scraper conveyor

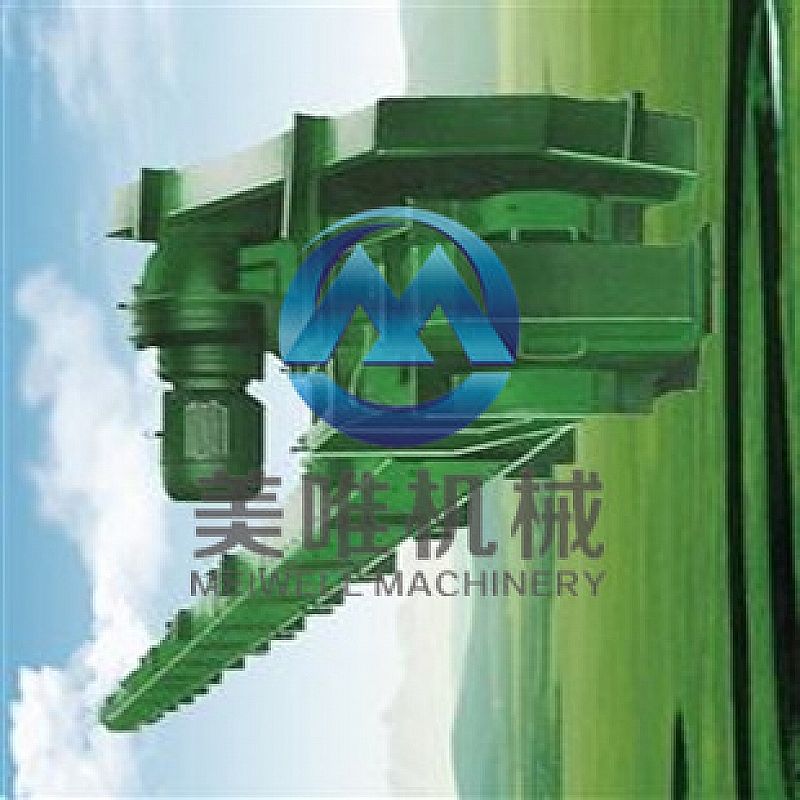

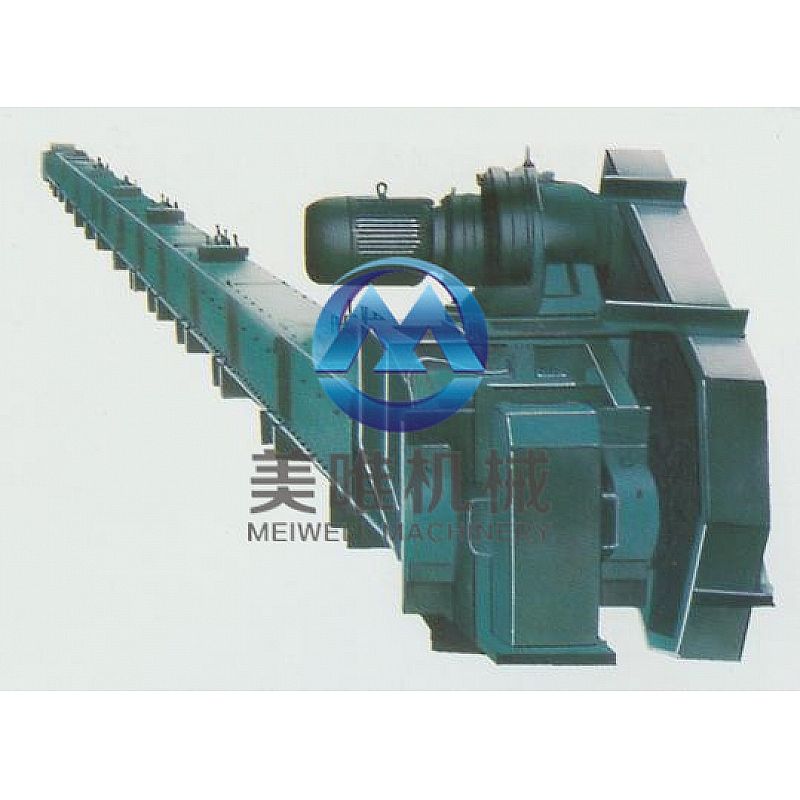

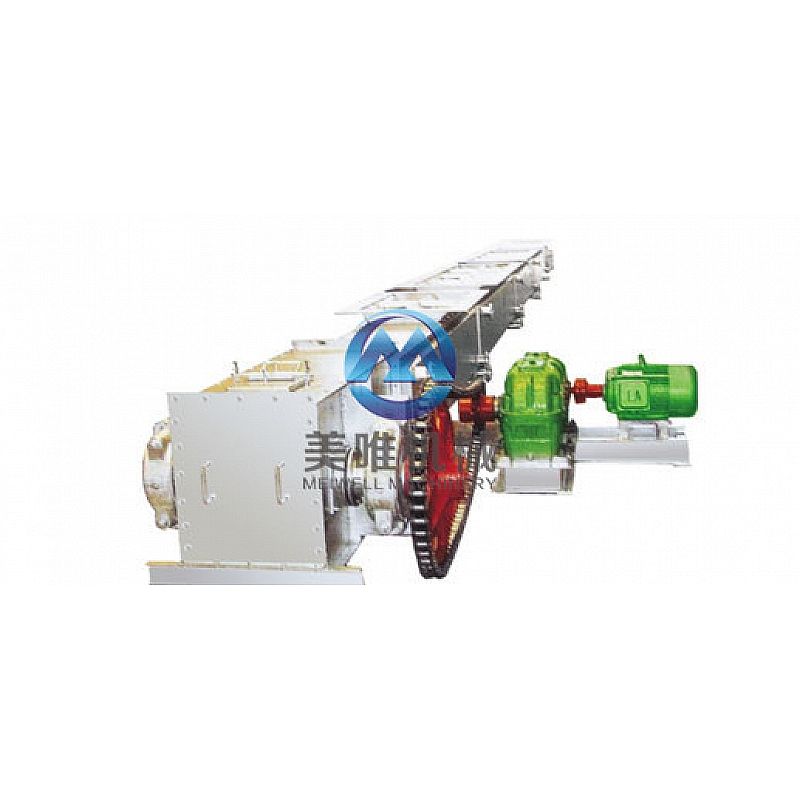

MC buried scraper conveyor

Item No.: IFA-GPS142014
MC type buried scraper conveyor is widely used in chemical industry, machinery, metallurgy, light industry, food, medicine, transportation, hydropower and other departments, used to transport small dust, granulated and small lump materials.

Main application:

MC type buried scraper conveyor is widely used in chemical industry, machinery, metallurgy, light industry, food, medicine, transportation, hydropower and other departments, used to transport small dust, granulated and small lump materials.

Characteristics:

1、The equipment is often used for horizontal conveying grain and powder material, also can be in 150 for inclined conveying angle scope.Therefore, based on single point out, also can feed more, more points, of transporting toxic, explosive materials, high temperature and float in the sky, improving workers operating conditions and reduce environmental pollution and so on has prominent characteristics.

2、The machine has long service life of the whole machine, smooth operation, structure, small size, high throughput, low energy consumption, low material breakage, etc.

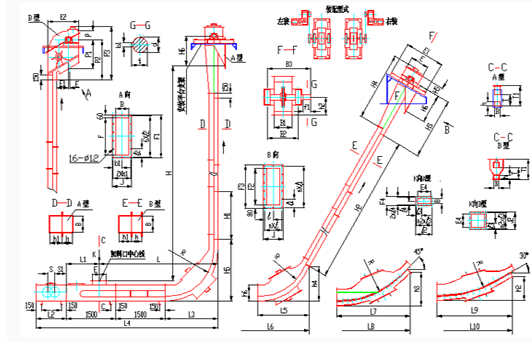

MC16--MC25 Buried scraper conveyor overall dimensions

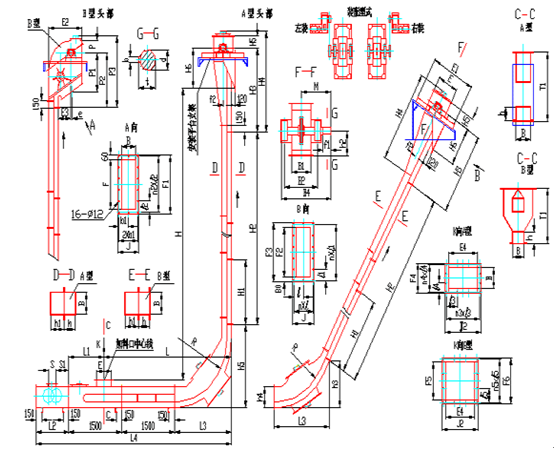

MC32--MC40 Buried scraper conveyor overall dimensions



Main parameters

Model no.

MC16

MC20

MC25

MC32

Vertical section of the machine slot width B(mm)

160

200

250

320

Vertical load machine slot height h(mm)

120

130

160

200

Vertical light machine slot height h2(mm)

130

140

170

215

Scraper chain

Chain pitch t(mm)

100

125

160

200

Type and code(chain)

Die forging chain

DL10

DL12.5

DL16



Roller chain

GL10

GL12.5

GL16



Double plate chain







BL20

Type and code(plate)

Type V2



Type O

Type O4







Chain speed V(m/s)

0.16



0.20

0.25




Chain speed V(m/s)

0.16




0.20


0.25


0.32


Throughput Q(m3/h)

11-22

15-30

23-46

46-74

Motor power(kw)

1.5





2.2



3.0



4.0



5.5

7.5

11/10



15/13



18.5/17





22







30







Max. Height H(m)

<30

Installation Angle



300 650 600 900
