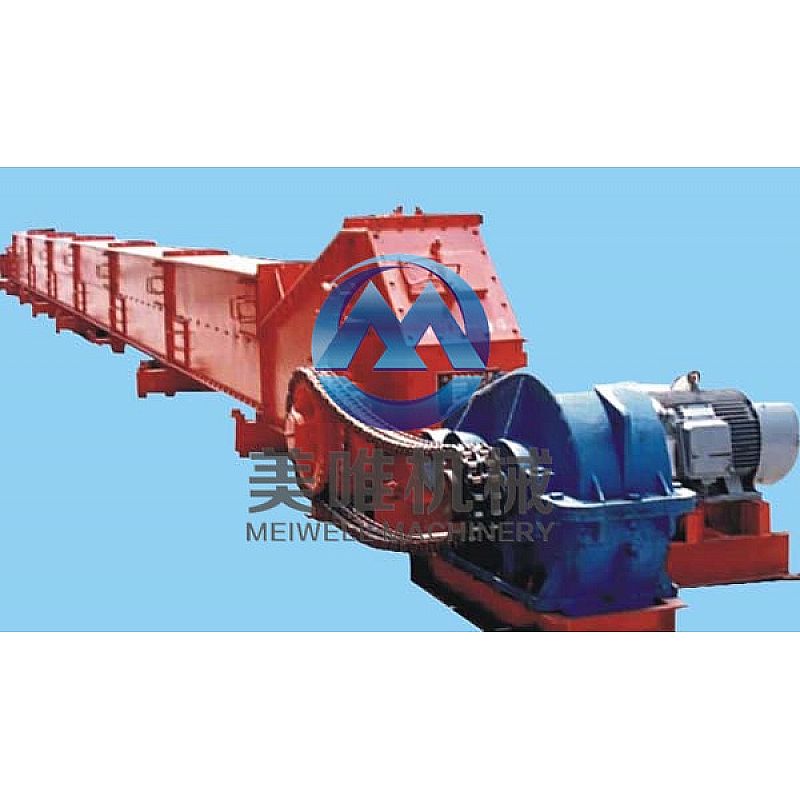

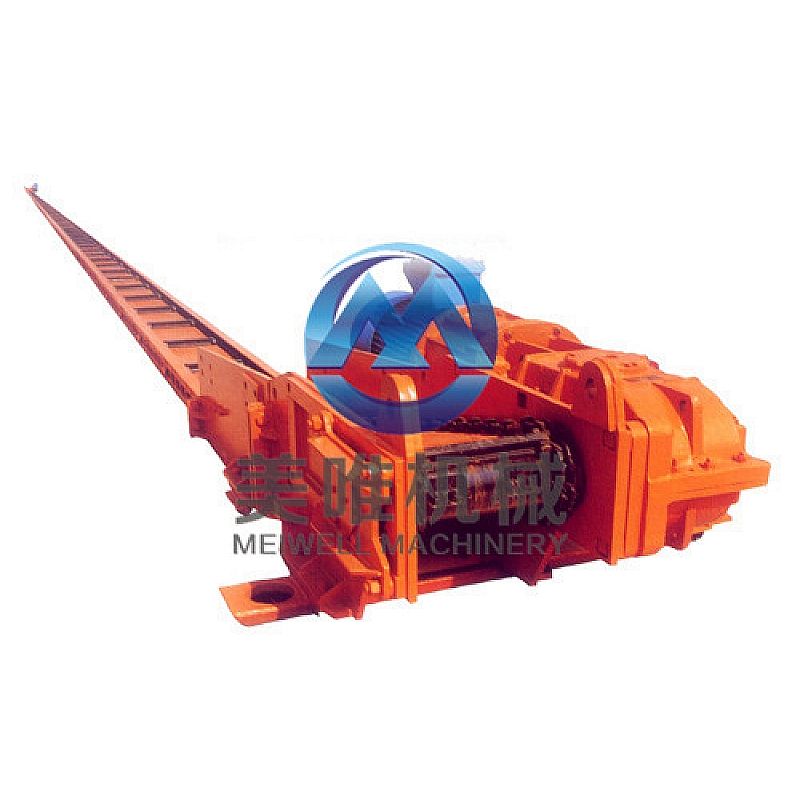

MSF air-tight buried scraper conveyor

MSF air-tight buried scraper conveyorMSF air-tight buried scraper conveyorMSF air-tight buried scraper conveyorMSF air-tight buried scraper conveyor

MSF air-tight buried scraper conveyor

Item No.: IFA-KDO545809
MSF series air-tight type buried scraper conveyor there are five kinds of specifications, the machine slot width is 400 mm; The largest throughput 60 t/m; Maximum transmission distance is 80 m;

Product introduction:

MSF series air-tight type buried scraper conveyor there are five kinds of specifications, the machine slot width is 400 mm; The largest throughput 60 t/m; Maximum transmission distance is 80 m;

Mainly used for conveying various strong volatile solvent, strong permeability, or containing poisonous small makings, platelet and powder material, such as oil plant oils containing solvent leaching workshop of cake, etc.

Main technical parameters:

Blowing machine models: YD430 machine slot ;length: 18 m

Transmission distance: 16.325 m ;conveying Angle: 5°

Scraper speed: 0.243 m/s ;transmission capacity: 20 m3 / h

Deceleration model number: XWD7.5-7-43 - B3; motor power: 7.5 Kw

Slow down chain models: 32-70 - a - 1 GB1243-1997

Bearing models: SN215 - GB7813-1987 ;(bearing models 6215): 4 PCS each

                                                                               Technical parameter table:

Type

MSF16

MSF20

MSF25

MSF32

MSF40

Machine slot width(mm)

160

200

250

320

400

Chain speed(m/s)

0.16-0.25

0.16-0.25

0.16-0.32

0.2-0.40

0.2-0.40

Throughput (t/h)

5-8

8-12

12-25

25-40

30-60

Max.transmission distance(m)

60

60

60

80

80

Attention Material calculated on soybean meal in the tableBulk density Y=0.55t/m3.Please modify according to the specific material selection.
