MZ buried scraper conveyor

MZ buried scraper conveyorMZ buried scraper conveyorMZ buried scraper conveyorMZ buried scraper conveyor

MZ buried scraper conveyor

Item No.: IFA-BYY537043
Products are widely used in metallurgy, building materials, electric power, chemical, cement, coal, mining, port, wharf, grain and oil, food, feed, and other industries and departments.

Scope of application:

Products are widely used in metallurgy, building materials, electric power, chemical, cement, coal, mining, port, wharf, grain and oil, food, feed, and other industries and departments.

Characteristics:

1、Simple structure, light weight, small size, manufacture, installation, use and maintenance is convenient.

2、Dust sealing performance is good, not in public, conveying material to prevent the contamination, improved the working conditions of workers.

3、Inlet and discharge device is simple, can multiport feeding and multiport discharge.

4、Flexible process layout, can be used for the difference between the target objective material conveying

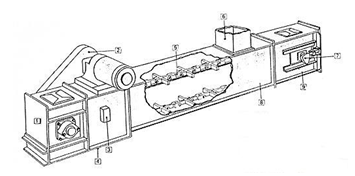

1、Head

2、drive device

3、Plugging material detector

4、Discharge outlet

5、Scraper chain

6、Loading port

7、Broken indicator

8、Middle section

9、The tail

                                    MZ buried scraper conveyor technical parameter table

Model no.

Speed m/s



Throughput m3/h

Density of the material
t/m3

H=5m

H=10m

H=15m

H=20m

H=25m

Max. power kw



MZ16





0.16

8

1.0

3.5

3.9

4.4

4.8

5.2

5.5

0.20

10

1.0

4.5

5.0

5.5

6.1

6.6

7.5

0.25

12

1.0

5.6

6.3

6.9

7.6

8.2

11

0.32

15

1.0

7.0

7.9

8.7

9.5

10.4

15



MZ20





0.16

11

1.0

4.9

5.4

6.0

6.5

7.0

11

0.20

13

1.0

6.2

6.9

7.6

8.3

9.0

15

0.25

16

1.0

7.8

8.7

9.5

10.4

11.2

18.5

0.32

21

1.0

9.8

10.9

12.0

13.0

14.1

22







MZ25

0.16

16

1.0

8.2

9.0

9.8

10.6

11.4

11

0.20

21

1.0

10.3

11.3

12.2

13.2

14.2

15

0.25

25

1.0

12.9

14.1

15.3

16.5

17.7

18.5

0.32

32

1.0

16.2

17.7

19.2

20.8

22.3

22











MZ32

0.16

26

1.0

11.0

12.2

13.4

14.6

15.8

15

0.20

32

1.0

13.8

15.3

16.7

18.2

19.8

18.5

0.25

40

1.0

17.3

19.1

20.9

22.7



22

0.32

52

1.0

22.1

24.4

26.8

29.1

31.6

30

0.40

64

1.0

28.4

31.5

34.6

37.7



37

0.50

81

1.0

35.5

39.4

43.3

47.1



45



MZ40









0.16

40

1.0

18.5









18.5

0.20

51

1.0

19.0

21.0







22

0.25

63

1.0

28.9









30

0.32

81

1.0

37.0









37

0.40

101

1.0

45.0









45

0.50

126

1.0

51.7









55



MZ50







0.20

70

1.0

33.6

36.6







37

0.25

88

1.0

42.0









45

0.32

113

1.0

53.8









55

0.40

141

1.0

68.8









75

0.50

176

1.0

86









90
