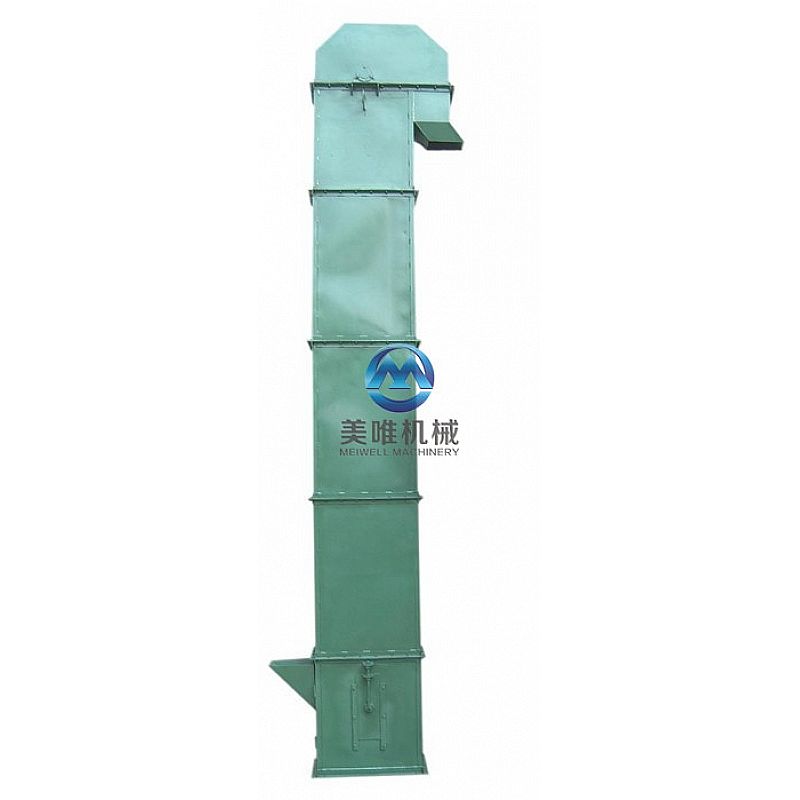

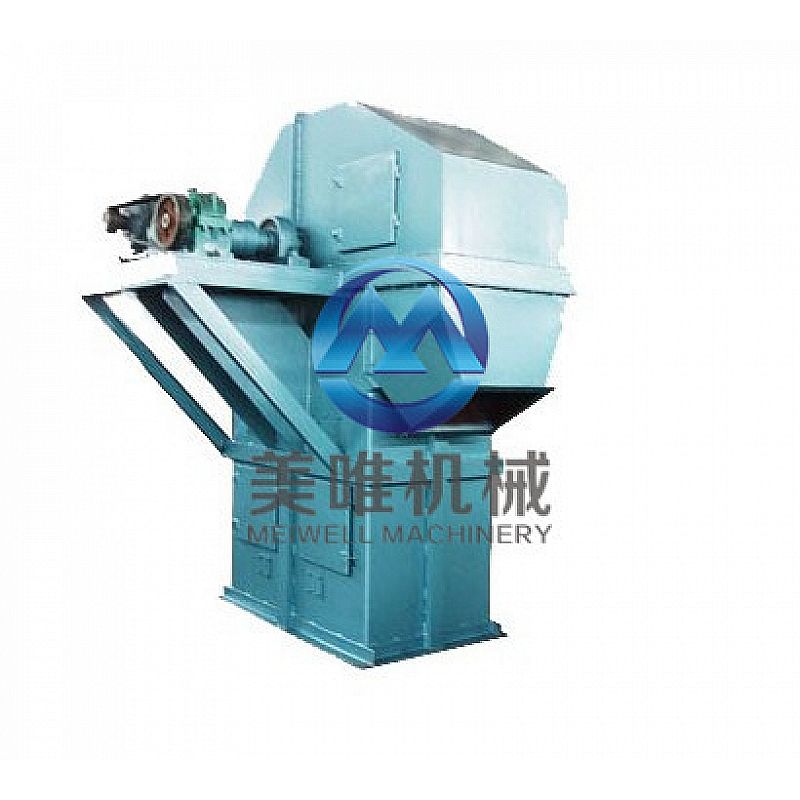

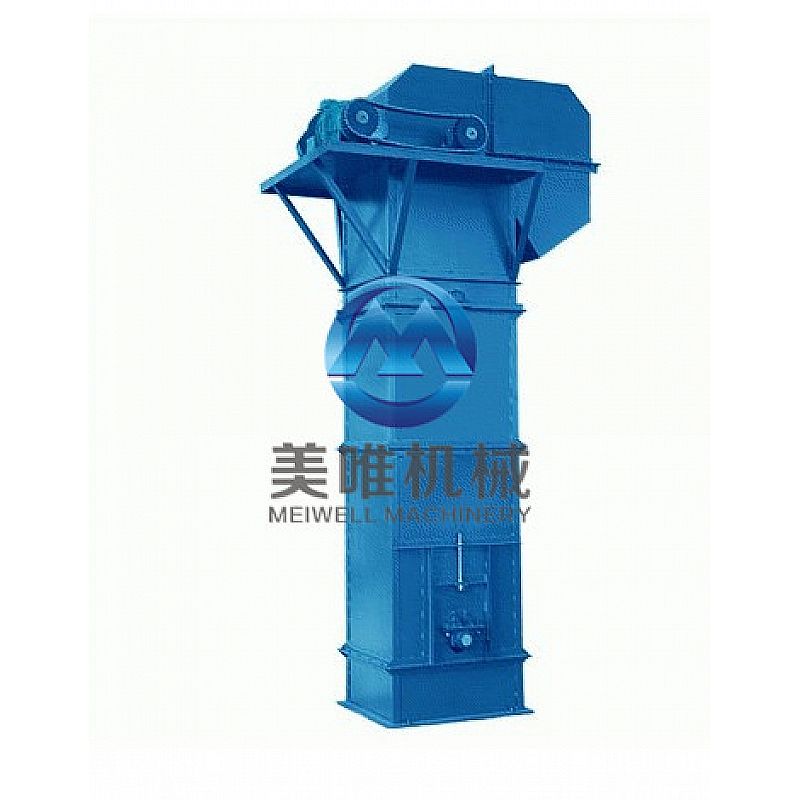

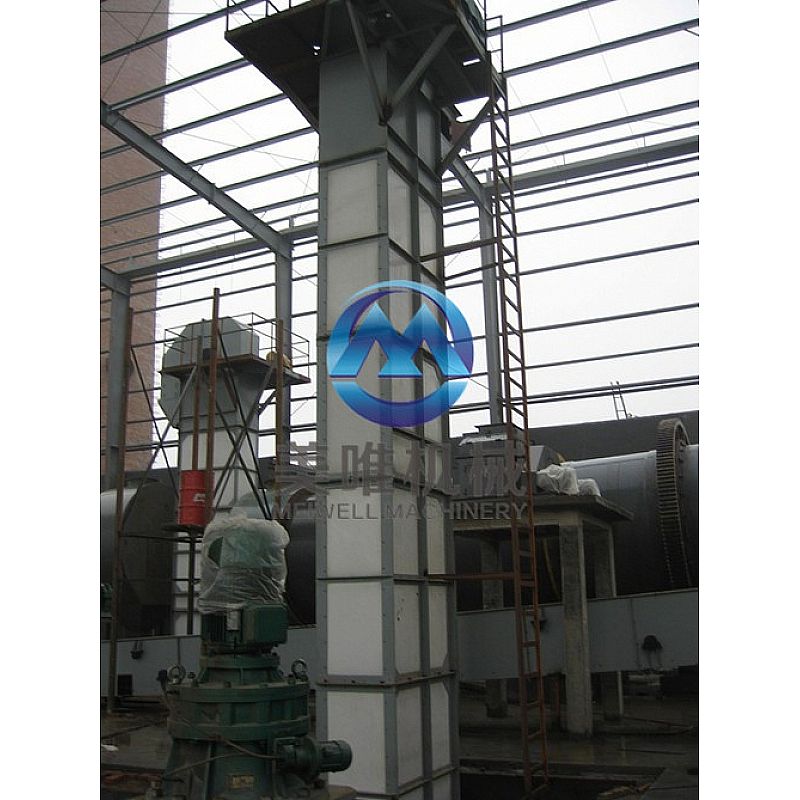

TH bucket elevator

TH bucket elevatorTH bucket elevatorTH bucket elevatorTH bucket elevator

TH bucket elevator

Item No.: IFA-QJG218510
TH series bucket machine is suitable for conveying, granular and powdered small block of grinding mill cut and sexual small materials.This has two hopper(in the deep ZH fight) generally applied in conveying wet, easy to agglomerate,

product overview:

  TH series bucket machine is suitable for conveying, granular and powdered small block of grinding mill cut and sexual small materials.

This has two hopper(in the deep ZH fight) generally applied in conveying wet, easy to agglomerate, difficult to throw the materials, such as wet sand, sand, fertilizer, alkali, alkali powder etc. SH (fight) generally applicable to deep conveying dry, loose easily thrown materials, such as cement, gravel, coal, etc.

TH type bucket hoist purpose

TH type hoist is a new product of our company. It developed based on HL type hoist .by contrast, has large transportation amount, high hoisting height, smooth and reliable operation, long service life and other significant advantages. Its main technical performances and parameters accord with JB3926-85 < < vertical dou pattern lift machine > > (this standard equivalent, the international standard reference and world advanced standard); Traction with the chain accord with TM36-8 < < mine high strength park chain .

Main features:

1. The convenient maintenance and long service life.

2 chassis plate thickening, good rigidity.

3. The highest temperature conveying materials can reach 2.5 degrees Celsius.

4 in the quarter with single and double channel cabinet form two channels.

5. Ascending highly stable operation, low noise, easy maintenance.

6 improved model of ascension than ordinary machine throughput 30% above.

7. Hoist chain using low alloy steel forging, and by carburizing quench treatment, high tensile strength and wear resistance.


Technical parameter:



Model specification

TH160

TH200

TH250

TH315

TH400



Hopper type

ZH

SH

ZH

SH

ZH

SH

ZH

SH

ZH

SH

(100%)3/h

Thoughput m/h



15.77

24.97

17.87

28.6

31.43

48.19

35

59

58

93

hopper



(hopper volunm

Water/L



1.2

1.9

1.5

2.4

3

4.6

3.75

6

5.9

9



Hopper gap

(m)

500

512

chain



Round steel diameter gap (mm)

φ14*50

φ18*64



Single load KN



≥190

≥320



Driven chain speed

r/m

69.71

63.22

44.11

44

37.6



Material max block (mm)

20

25

30

35

40
